• Cordless Pruning Saw

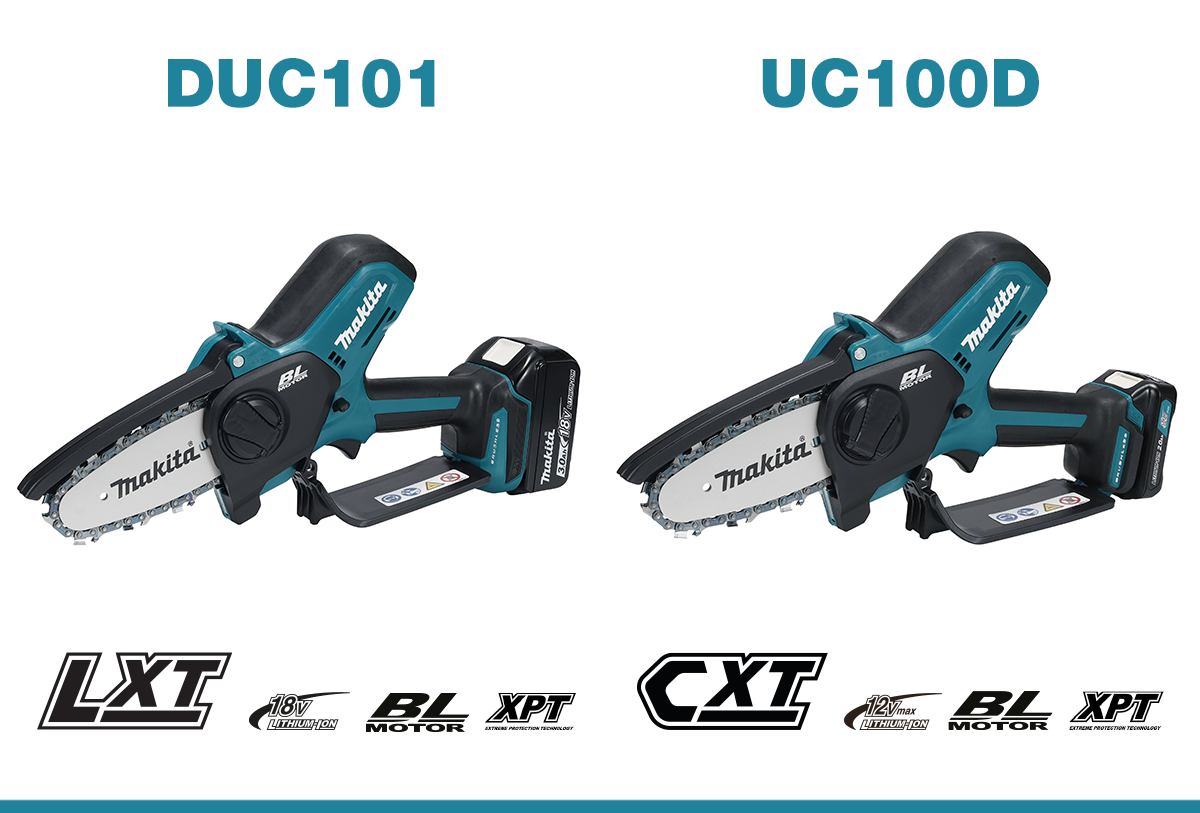

    DUC101 & UC100D

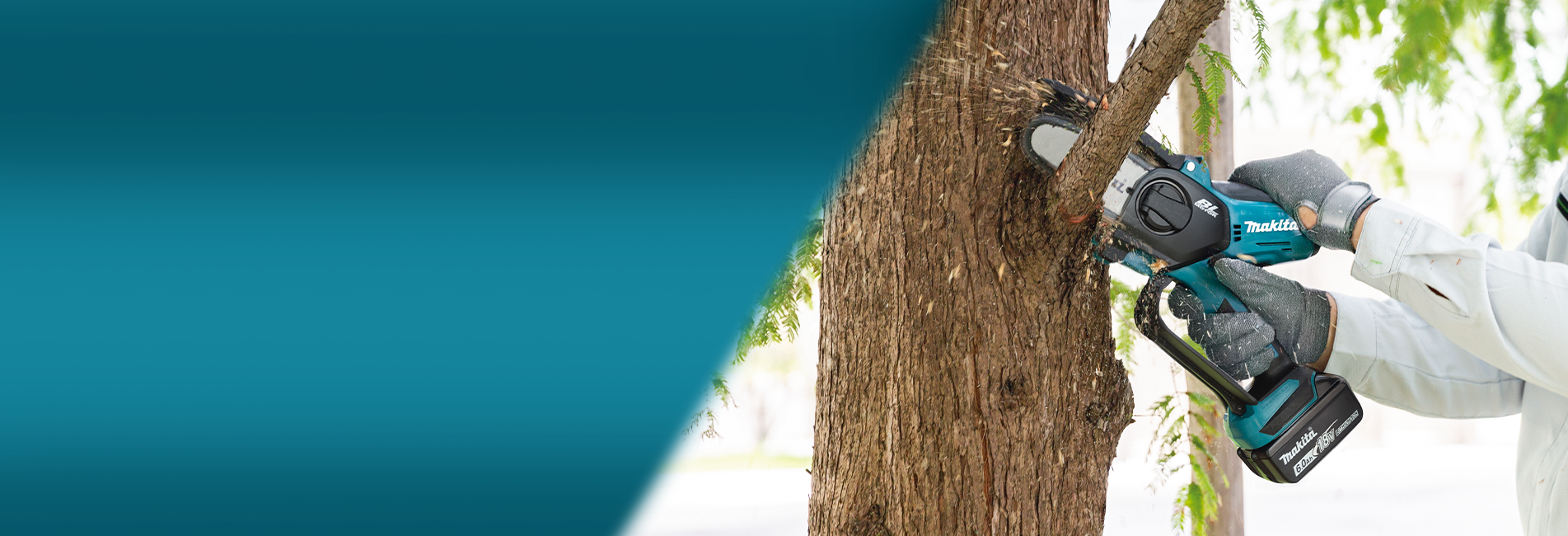

Easy-to-use, lightweight and compact Pruning Saw



Handy cordless pruning saws

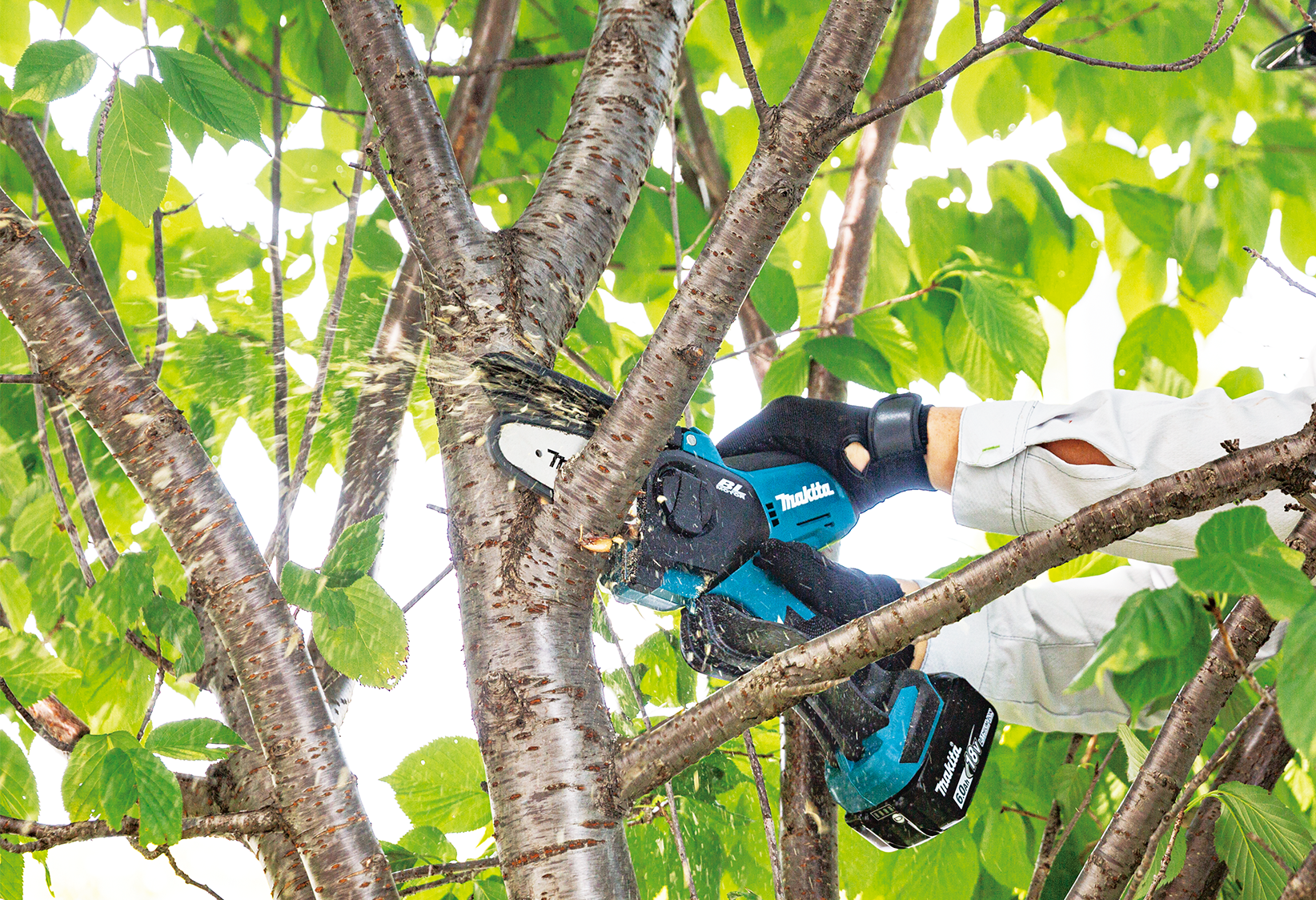

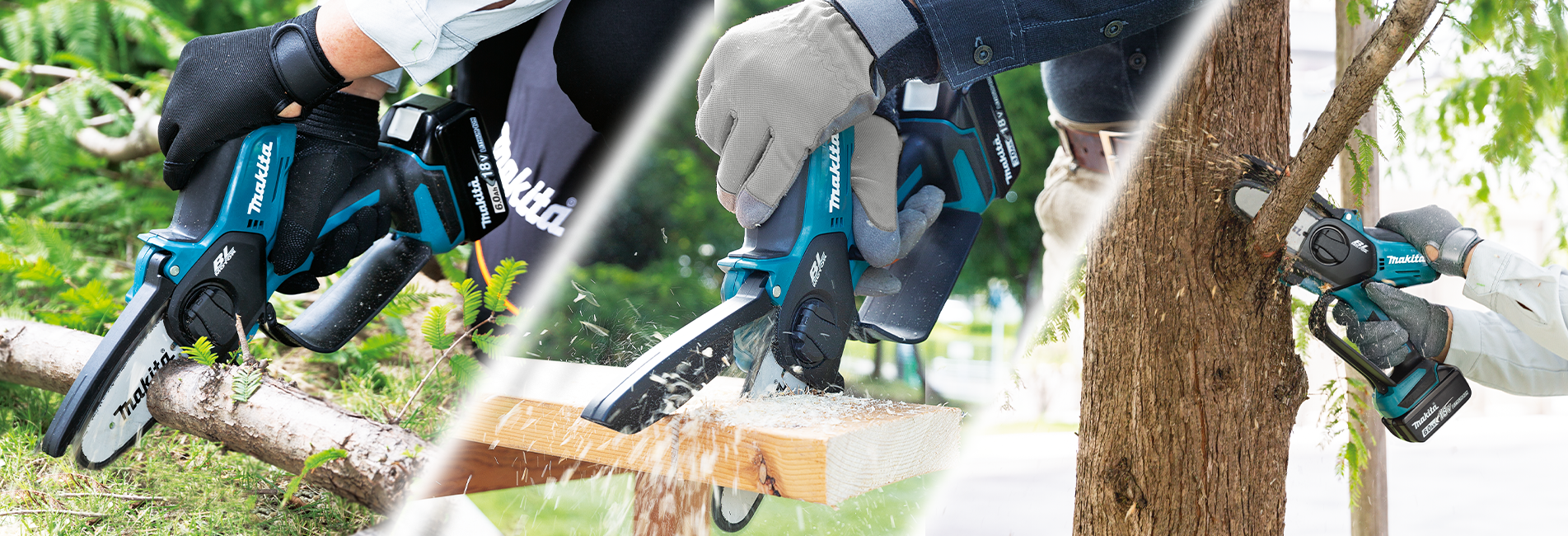

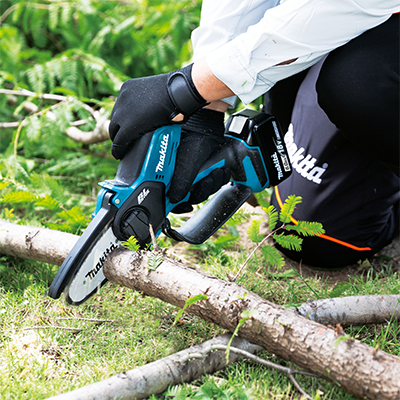

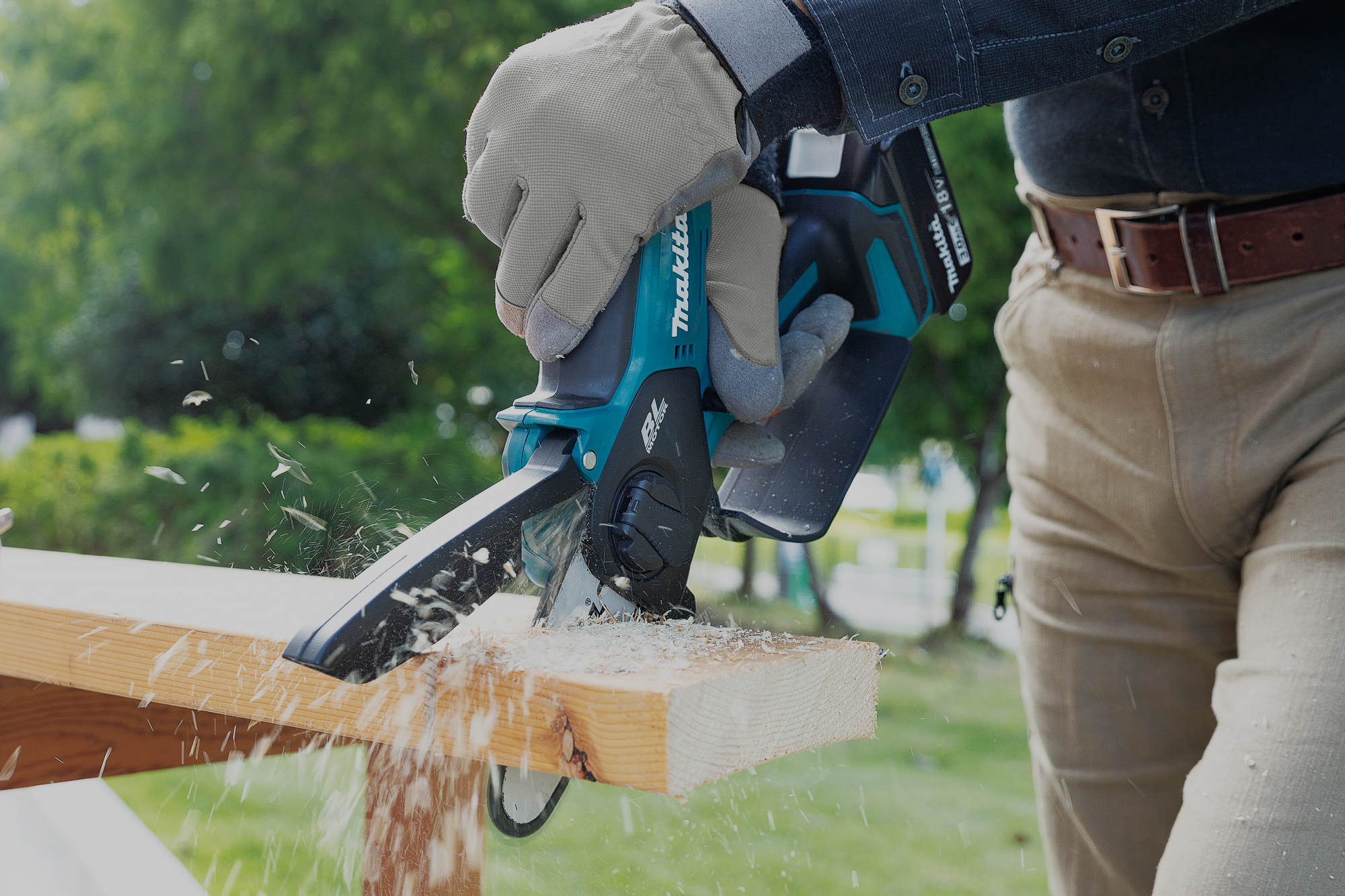

With a compact and handy design, the DUC101 and UC100D pruning saws offer maximum flexibility and are ideal for pruning and precise corrective cuts. Chopping green waste and small cutting jobs in the garden are also possible without any problems. Moveable guard covers the upper side of guide bar and opens gradually wider as saw chain cuts deeper in branch.

DUC101 and UC100D are equipped with a 100 mm bar and tool-less chain and bar tensioning. The new tool-free chain tensioner enables the chain to be changed quickly and easily by simply loosening and closing the lever. When adjusting the chain tension or changing the chain, always keep your safety in mind and wear suitable gloves to protect your hands.

Automatic chain lubrication minimizes the chance of stall due to forgetting to supply chain oil.

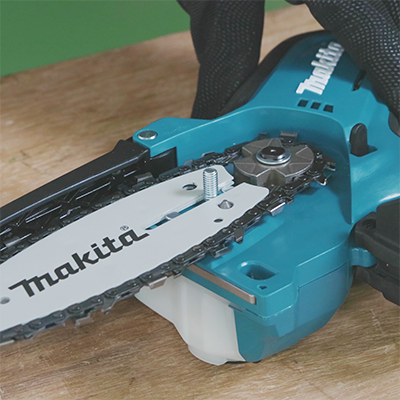

New tool-less change and tension adjustment of saw chain

This easy-to-operate large lever is designed to be pulled up and turned easily. The new tool-free chain tensioner enables the chain to be changed quickly and easily by simply loosening and re-tighten the lever to automatically adjust the tension of saw chain. When adjusting the chain tension or changing the chain, always keep your safety in mind and wear suitable gloves to protect your hands.

  • Work amount

    Test conditions:
    Cut ø50 cedar rod under an optimal pressing load of 20N or less on cutting edge.
    Saw chain: 80TXL

    DUC101

    UC100D

    210 pcs.

    73 pcs.

    Battery: BL1830B

    Battery: BL1021B



Safety

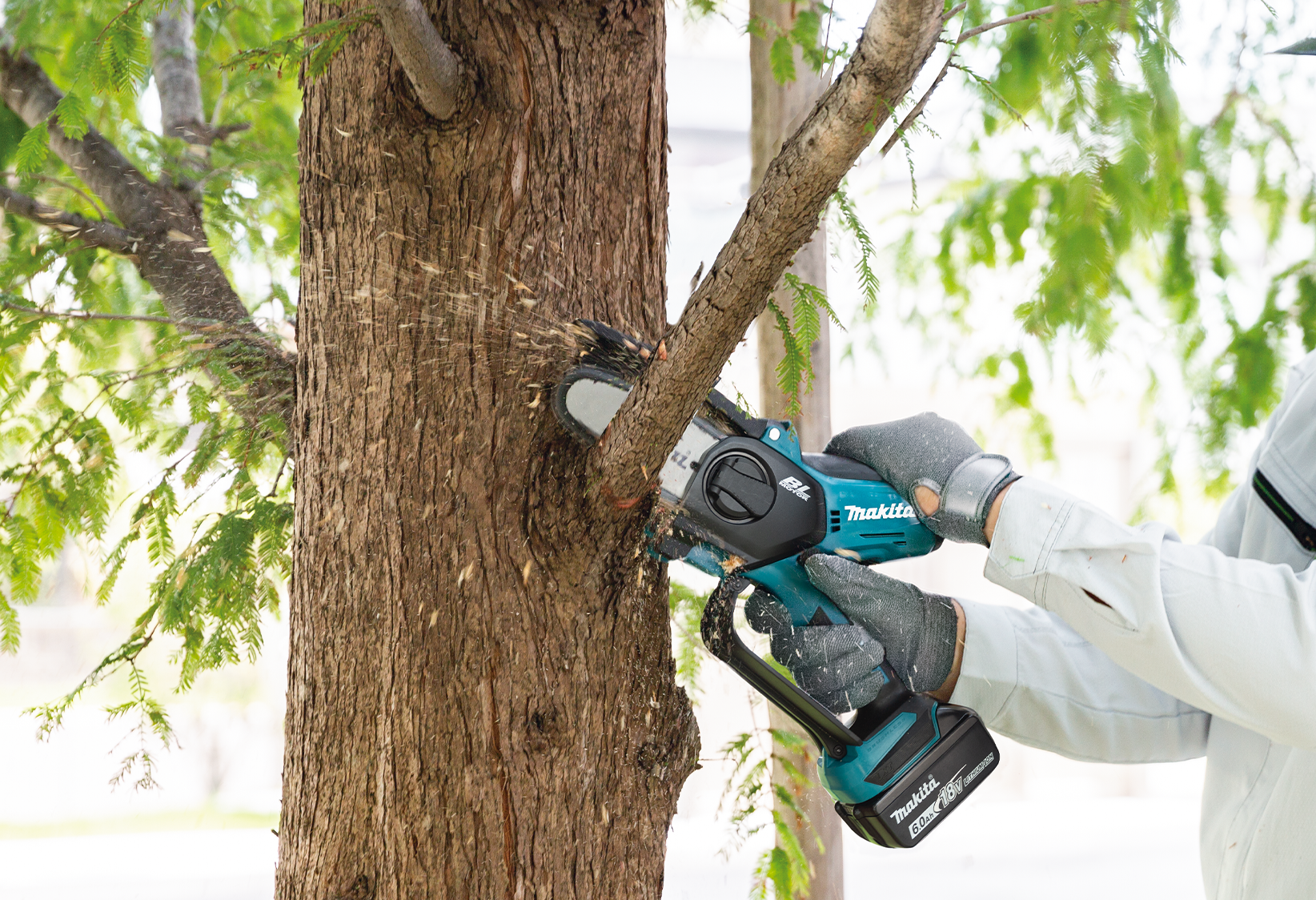

Even though the cordless pruning saws UC100D and DUC101 are compact and lightweighted it should always be operated with both hands when possible. One hand holds the rear handle, the other stabilizes the pruning saw for a straight cut. For added safety, the electric brake stops the machine immediately after the switch is released.



Technical Specifications

DUC101
Technical Specifications

Max output: 320 W

Guide bar length: 100 mm (4")

Saw chain: 80TXL

Chain speed: 8.0 m/s (1,570 FPM)

Chain oil tank volume: 55 mL

Vibration level: Front: 4.6 m/s² / Rear: 4.0 m/s²

Dimensions w/o Battery (L x W x H):357 x 90 x 232 mm

Net weight: 1.6-2.0 kg



UC100D
Technical Specifications

Max output: 210 W

Guide bar length: 100 mm (4")

Saw chain: 80TXL

Chain speed: 8.0 m/s (1,570 FPM)

Chain oil tank volume: 55 mL

Vibration level: Front: 4.8 m/s² / Rear: 4.1 m/s²

Dimensions w/o Battery (L x W x H): 350 x 90 x 215 mm

Net weight: 1.5-1.6 kg



  • Compact and lightweight BL motor for higher efficiency in operation

  • Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions



  • Movable guard

    Movable guard covers the upper side of guide bar, and opens gradually wider as saw chain cuts deeper in branch.

Read More

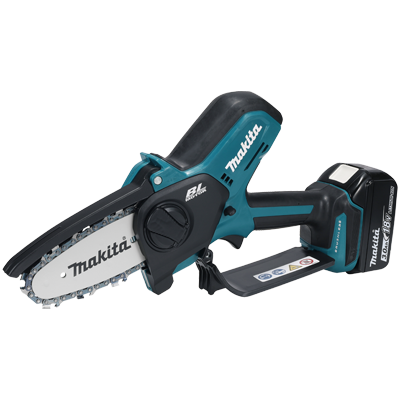

DUC101

18V • 100 mm • 8,0 m/s

Easy-to-use and lightweighted cordless pruning saw for pruning and precise corrective cuts. Equipped with a 100 mm bar and tool-less chain and bar tensioning. A brushless motor and electric brake for maximum productivity.



To Product Page

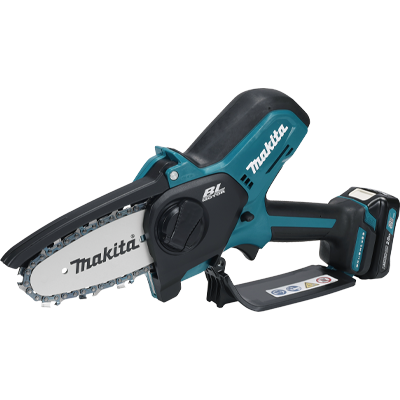

UC100D

10,8V • 8,0 m/s • 10 cm / 4"

Easy-to-use and lightweighted cordless pruning saw for pruning and precise corrective cuts. Equipped with a 100 mm bar and tool-less chain and bar tensioning. A brushless motor and electric brake for maximum productivity.



To Product Page
